  LCR-MAX Series Chillers
Overview Specifications Graphs

LCR-MAX Rack-Mount VersionLCR-Max Free-Standing Version
Specifications:
Setpoint Temp Range : 5°C - 35°C
Cooling Capacity : Model LCR-2: 200W@20ºC
  Model LCR-4: 400W@20ºC
  Model LCR-8: 800W@20ºC
Stability : ± 0.1°C
Pump Options : PDM - 3-10- SS
Dimensions in. (WxDxH) : 17.12 x 17.26 x 8.70
Ambient Temp : 15°C - 35°C



K-O Concepts, Inc. catalog LCR-Max water chiller bridges the gap between TEC and compressor based rack-mount recirculating water chillers. The LCR-Max can cool heat loads at or below 800 watts w/ a temperature accuracy of ±0.1°C of set point. The LCR-Max can be powered by 115V power that would otherwise require 230V mains. The volume of a LCR-MAX is 24-73% less than competing models.

K-O Concepts, Inc. LCR-Max has been specially designed to cool CO2 lasers such as Synrad's firestar-V series and series 48 CO2 lasers.
  LCR-MAX Series Details
CE Compliant
K-O Model LCR-MAX chillers have been evaluated by an independent test lab and certified CE compliant.

LCR-MAX
Maximum performance in a minimum package. Plug this Lil' Chill cooling module into any wall socket around the world. Specially targeted for direct diode & diode-pumped laser systems.

Easily Integrated
Standard 19 inch rack-mounted configuration allows the cooling module to be integrated with the equipment to be cooled. Fully enclosed cabinet is equipped with handles for ease of installation. Weights from on 47lb. / 21 kg. The chiller is air-cooled for portability.

Selectable Voltage
Field Selectable Voltage: 100, 120, 200, 208, 230 VAC, 50 or 60 Hz, 1Ø.

Accurate Process Water Temperature Control
Standard digital "PID" controller accurately maintains the desired process water temperature to within ±0.1°C of set temperature. Dual digital readout displays both set and actual process water temperatures. Our newly developed control system is patent pending.

Heating
Waste heat is harvested from the system's compressor to quickly raise the temperature of the process water. Approximately 40% of the BTU rating of the chiller unit is available for heating the process water up to 35°C without any external heat load.

Computer Interface
Optional 485 computer interface for monitoring of time vs. process water temperature and more.

CFC Free Refrigerant
All models use environmentally friendly R134a (HFC-134a) refrigerant. Chiller units using this refrigerant can be sold into Europe and Asia . This is the same refrigerant used in all new automobiles.

Process Water Pumps
Standard positive displacement (sliding vane) style process water pump with eight (8) speed settings provides flow from 3-10 liters per minute @ 70 psi (4.8 bar) available pressure.

Optional Deionized (DI) Water Package
Includes nickel brazed heat exchanger, DI cartridge assembly, and upgraded 3/16 stainless steel fittings. Easy service to the DI cartridge is accomplished from the rear panel.

Easy to Service & Maintain
Chillers are designed for easy service and maintenance. Convenient process water fill & drain features on all models. Options include quick-disconnect fittings, particle filter, deionizer cartridge, DI water monitor, & umbilical assembly to protect coolant lines.

Free Standing Conversions Available
Converts rack-mount to free-standing chiller with casters.

Contact K-O Concepts Now!


 Accessories
 Product Model  Description
 Replacement Accessory Kit     ACC-KIT    Includes: Power Cord, 4ft. Drain Hose, Funnel, 2 Controller Manuals, 1 package of 5 Air Filters, & rack-mount kit assembly (kit included with new chiller).
 Bypass Assembly (Brass)     BPV-1/4   Back panel-mounted, brass valve allows process coolant to be bypassed between the supply and return bulkhead fittings to adjust coolant flow to the load.
 Bypass Assembly (Polypro)     BPV-1/4-PP  Back panel-mounted, polypropylene valve allows process coolant to be bypassed between the supply and return bulkhead fittings to adjust coolant flow to the load.
 Condenser Fan Filters     AF-5   Pack of 5
 RS-485 Communications     RS-485   Communications board is installed internal to the digital controller.
 RS-485 Com. Software     RS-485-SW   Software package for installation into customer computer.
 Free Standing Conv. Kit     FSC   Converts rack-mount unit to free standing w/ casters
 Deionizer (DI) Package     DI-5LC   Nickel brazed heat exchanger, rear panel mounted DI assembly, 316 SS water fittings, & SS pressure gauge
 DI Cartridge     SB-0500 LC   Replacement cartridge
 Process Umbilical (Brass)     UM-8-B   Includes mounting bracket mounted to back panel supporting 8ft long, 1-1/4 inch Ø umbilical that protects 1/2" OD process water tubes. Brass interface fittings installed into rear panel bulkhead fittings. Assembly required.
 Process Umbilical (SS)     UM-8-SS   Includes mounting bracket mounted to back panel supporting 8ft long, 1-1/4 inch Ø umbilical that protects 1/2" OD process water tubes. 3/16 SS interface fittings installed into rear panel bulkhead fittings. Assembly required.
 5 Micron In-Line Filter     FILT-6C   Cartridge style
 5 Micron Panel Mounted Assy     FILT-5   Includes a back panel-mounted particle filter assembly that includes a filter canister w/ fitting for installation onto chiller back panel, a spare replacement filter (P5-478), & wrench.
 5 Micron P.P. Filter Cart.     P5-478   Replacement 5 Micron polypropylene filter cartridge.
 Opt. Temp. Sensor Output     TS-T or -J   Optional second temperature sensor T or J type thermocouple w/ connector located on back panel & w/ mating connector provided.
 Opt. Temp. Sensor Output     TS-RTD   Optional process temperature sensor, RTD 100 Ohm, w/ connector located on back panel & w/ mating connector provided.
 Interface Cable Assembly     INT-8   8 Foot cable assembly provides "Interface" signals to user.

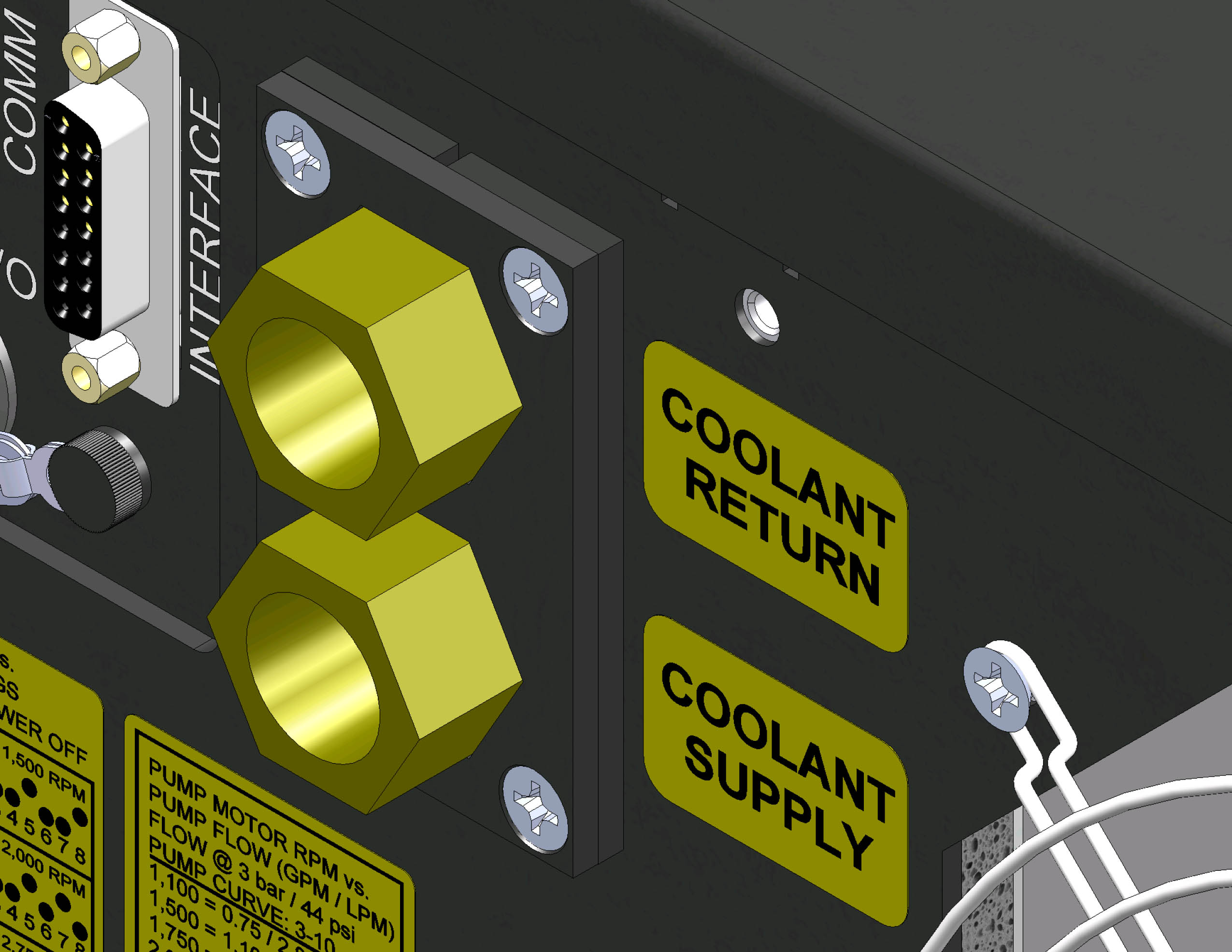

 Opt. 1/4 Bulkhead Fittings B-1/4  Optional 1/4 bulkhead fittings on the rear panel for low flow  conditions.
 Insulation for Low Temps     INS-LCR   An optional insulation package is applied to the process coolant tank, pump, & lines. Insulation minimizes condensation for low temperature or high humidity operation.
 IPG (Glycol) Assembly     IPG   Optional 1 qt. bottle of IPG/Glycol included w/ Materials Safety Data Sheet. IPG/Glycol should be used if you have aluminum in your coolant circuit.
 PAO (Synthetic Oil Coolant)     PAO   Optional assembly for K-O units that need the coolant to be non-conductive. K-O units with PAO compatibility are tested with PAO. Fittings are bonded not wrapped with Teflon Tape.
 Chiller Exhaust Assembly     DUCT-7IN   Optional rear-panel mounted duct assembly. Discharges chiller exhaust air out of deep cabinet.
